SEG FRAMING & LIGHTBOXES

High-end Framing Solutions

With a proven track record of delivering custom, high-end framing solutions to industry giants, SEG Warehouse stands as a trusted provider in the field. Our expertise lies in engineering aluminum profile extrusions that can be fabricated to make your ideas a reality. Whether you need a backlit display, one that seamlessly retrofits to an existing structure, or a freestanding frame, SEG Warehouse has it. With a never ending list of possibilities, your company has the power to create outstanding brand identity using our unique products for visually stunning pieces.

ORDER TODAY ➔ whyseg.com or CONTACT US for a quote.

Three vertical SEG lightbox displays featuring football players and a branded pedestal for BetMGM at an indoor event.
SEG freestanding fabric wall display featuring BMW branding behind a white SUV with matching branded pedestal on artificial grass.
Rendering of a curved SEG wall graphic installed in a reception area featuring The Office Squad branding in a modern office.
Rendering of a large wall-mounted SEG lightbox with university building photo installed in an airport.
Curved SEG lightbox display with colorful illustrated mural installed in a corporate hallway.
SEG fabric graphics with Cree LED branding installed on a large suspended square hanging sign at a tradeshow exhibit.
SEG lightbox with vibrant printed neon lettering spelling El Cortez in a casino
Oversized circular SEG lightboxes installed overhead in a retail bookstore environment.
SEG lightbox with disco-themed print and horse sculpture at an outdoor evening event.

Extrusion Profiles

WALLZ SYSTEM

W-F063 0.63” F-Track

  • Featuring a slim .63" profile depth, the F063 is commonly used for creating frameless wall art displays using the thinnest depth wall-mounted SEG graphics. Additionally, it’s great for on-site booth fabrication, providing a versatile option for both temporary and permanent display structures.

  • With a .63" profile, this extrusion offers a lightweight and cost-effective solution for “frameless” wall applications. It seamlessly integrates with the Y-track, enabling smooth 90-degree corner transitions for added versatility and design flexibility.

Rendering of .63 inch SEG track for curved wall displays and custom builds.

W-FB063 0.63” Bendable

  • The FB063 is commonly used in applications requiring arches and curved walls. It is particularly suitable for projects that demand flexible profiles capable of molding around custom curves while maintaining the necessary rigidity to securely house fabrics.

  • The FB063 is extruded with T5 hardness, allowing to flex and mold around custom curves. This feature makes it an excellent choice for architectural elements such as arches and curved walls. The profile retains its rigidity, ensuring a sturdy structure that securely holds fabrics, making it ideal for seamless and visually striking displays.

Closeup of 1.57 inch H-track SEG extrusion, ideal for privacy partitions, doors, or branded booth entryways.

W-H157 1.57” H-Track

  • The H-track provides cost-effective solutions for transforming various openings, such as windows, doors, archways, and event booths, into functional art. It is commonly used for both permanent and temporary applications, offering versatility and visual enhancement.

  • The H-track features a design that allows for the easy installation of temporary or permanent SEG window coverings, seamlessly closing off doorways and other openings. Its versatility extends to safely and conveniently covering existing artwork for shows or events, making it a practical choice for creating dynamic and visually appealing displays.

Rendering of W-F100 SEG F-track, used to conceal acoustic panels or foam behind SEG fabric walls.

W-F100 1” F-Track

  • This F-track is the big brother from our .63” extrusion, and is commonly used for wall-mounted SEG graphics and on-site booth fabrication. It is particularly suitable for applications that require concealing sound deadening foam behind artwork, ensuring optimal acoustics. With its versatility, it provides a reliable option for both temporary and permanent display structures.

  • This F-track extrusion features a 1-inch profile depth, offering ample space between the graphic and the wall. This space can be utilized to conceal sound deadening foam behind artwork, enhancing the acoustic properties of sound rooms. The extrusion's sturdy design and compatibility with SEG graphics ensure a secure and seamless display that combines functionality and aesthetic appeal.

W-Z114 1.14” Z-Track

  • The Z114 extrusion offers a dual-use, cost-effective solution for transforming various openings into functional art with an edgeless appearance. It is commonly used for creating edgeless SEG window coverings, closing off doorways and other openings seamlessly, and serving as a universal French cleat for wall mounting needs.

  • The Z114 extrusion allows for the creation of edgeless SEG window coverings and closures for doorways and openings, providing a sleek and seamless aesthetic Additionally, the extrusion serves as a versatile universal French cleat, providing a reliable solution for securely mounting objects on walls.

Rendering of 1.28 inch bendable H-track extrusion, suited for curved SEG installations or dimensional shapes.

W-HB128 1.28” H-Track Bendable

  • H-Track Bendable offers versatile solutions for converting various openings, such as windows, doors, archways, and event booths, into functional art. Its bendable nature makes it particularly suitable for creating curved or custom-shaped installations, providing endless possibilities for unique design applications.

  • The H-Track Bendable features a flexible design that allows for easy bending and molding to create curved or custom-shaped configurations, adding a dynamic touch to any space. It serves as an effective solution for both temporary and permanent SEG window coverings, seamlessly closing off doorways and other openings while offering the ability to cover existing artwork safely and easily for shows or events.

loseup view of W-F150 SEG F-track extrusion with deeper channel, great for 3D gallery-style displays.

W-F150 1.5” F-Track

  • The 1.5" F-track is the larger counterpart to the F100. Commonly used for wall-mounted SEG graphics and on-site booth fabrication. It is particularly suitable for applications that require concealing sound deadening foam behind artwork, ensuring optimal acoustics. With its versatility, it provides a reliable option for both temporary and permanent display structures.

  • The F150 extrusion features a substantial 1.5" profile depth, allowing for generous space between the graphic and the wall. This increased space can easily accommodate thicker sound deadening foam, making it an ideal choice for applications requiring enhanced soundproofing. The sturdy design and compatibility with SEG graphics ensure a seamless and secure display, providing both functional and aesthetic benefits for various installations.

Rendering of .56 inch Y-track for seamless SEG corner transitions and 90-degree edge displays.

W-Y056 0.56” Y-Track

  • The Y-track is commonly used to achieve seamless 90-degree corner transitions when combined with F063 and FB063 profiles, making it ideal for creating visually appealing displays with artwork of your choice.

  • The Y056 Y-track features a specially designed profile that enables easy and seamless 90-degree corner transitions. Its compatibility with F063 and FB063 profiles ensures a secure and precise fit, allowing for the creation of stunning and unique wall wraps.

NON-LIT FRAMES

Closeup rendering of 1.5 inch SEG frame, designed for double-sided non-lit graphic displays and tradeshow booth structures.

DSF-175 1.75” Double Sided

  • The non-lit, double-sided, 1.75" frame is specifically designed for hanging signs, offering a versatile solution that can also be used as a freestanding display or temporary barrier, making it suitable for a wide range of applications in retail environments, trade shows, and event displays.

  • This frame incorporates a unique nut catch track feature, which securely locks a nut into place, minimizing the need for additional hardware and simplifying the installation process. Its double-sided design allows for dual-sided messaging or graphics, maximizing visibility for various signage and display needs.

SSF-244 2.44” Singled Sided

Rendering of 3 inch SEG aluminum extrusion used for durable, freestanding double-sided signage or partitions.

DSF-300 3” Double Sided

  • The 3" double-sided frame is commonly used in retail environments, trade shows, and event displays, offering a versatile solution for showcasing dual-sided graphics and messaging.

  • This frame features a nut catch track that securely locks nuts into place, minimizing the need for additional hardware during installation. Its double-sided design allows for maximum visibility and impact, making it suitable for various applications such as hanging signs, freestanding displays, and temporary barriers.

Closeup view of 4.5 inch SEG frame, ideal for large non-illuminated double-sided fabric graphic installations.

DSF-450 4.5” Double Sided

LIGHTBOXES

Rendering of 4.5 inch SEG lightbox extrusion for double-sided illuminated fabric displays in high-traffic environments.

DSLB-450 4.5” Double Sided

  • Double Sided Lightboxes, available in 4.5", 6.5", and 8" size widths, are widely utilized for a range of applications including backlit SEG hanging signs, freestanding displays, and comprehensive event booth build-outs, ensuring vibrant and attention-grabbing visuals for diverse promotional needs.

  • These extrusions, as the name suggests, can hold graphics on both sides, and house light bars for beautifully bright images on both sides to increase visibility.

Rendering of 2.44 inch SEG lightbox extrusion with BeMatrix and Aluvision compatibility and sleek backlit displays.

SSLB-244 2.44” Single Sided

  • The 2.44" single-sided lightbox extrusion is designed to be compatible with common modular frames (62 mm deep), making it ideal for creating seamless lightboxes. It is commonly used for applications such as retail displays, exhibition booths, and indoor signage, ensuring vibrant and eye-catching visuals.

  • This extrusion features a center track extruded with an M8 thread type, allowing for easy installation and customization. Its curved edge design ensures even light dispersion for a uniform and visually appealing illumination. The extrusion offers flexibility, as it can be used as a single-sided lightbox with a light-blocking backer fabric OR for adding blocked-out graphics to the back, catering to different display requirements and preferences.

Closeup rendering of 6 inch SEG extrusion frame for double-sided backlit lightboxes with enhanced LED depth.

DSLB-650 6.5” Double Sided

  • Double Sided Lightboxes, available in 4.5", 6.5", and 8" size widths, are widely utilized for a range of applications including backlit SEG hanging signs, freestanding displays, and comprehensive event booth build-outs, ensuring vibrant and attention-grabbing visuals for diverse promotional needs.

  • These extrusions, as the name suggests, can hold graphics on both sides, and house light bars for beautifully bright images on both sides to increase visibility.

Closeup rendering of 3.9 inch SEG frame for compact, ADA compatible backlit displays.

SSLB-390 3.9” Single Sided

  • The 3.9" Single Sided Lightbox is ADA compliant and widely utilized in various settings such as airports, hotels, hospitals, and government buildings. Its common applications include ADA wall-mounted lightboxes, free-standing backlit SEG displays, and hanging signs.

  • This lightbox boasts a 3.9" depth, meeting ADA compliance standards while providing a sleek and low-profile design. It offers versatility with options for wall-mounted installations, free-standing displays, and hanging signs. The backlit SEG feature ensures vivid and attention-grabbing visuals, making it an ideal choice for creating impactful and accessible signage solutions in public spaces.

Closeup of 8 inch SEG double-sided lightbox extrusion designed for large-scale, illuminated fabric installations.

DSLB-800 8” Double Sided

  • Double Sided Lightboxes, available in 4.5", 6.5", and 8" size widths, are widely utilized for a range of applications including backlit SEG hanging signs, freestanding displays, and comprehensive event booth build-outs, ensuring vibrant and attention-grabbing visuals for diverse promotional needs.

  • These extrusions, as the name suggests, can hold graphics on both sides, and house light bars for beautifully bright images on both sides to increase visibility.

Rendering of SEG lightbox cube extrusion system designed for seamless, 360-degree illuminated fabric graphics.

CB-171 1.71” Cube

  • The Cube extrusion offers a wide range of applications, serving as a structural feature, suspended display, window display, or an end table display, allowing for versatile and creative showcasing possibilities.

  • Highlighted by its internally lit design, the Cube extrusion provides captivating illumination from within. Its stackable nature enables modular configurations, while the clean edges and graphics on all sides make it a visually striking centerpiece. Additionally, the Cube extrusion can be used as a free-standing display, enhancing its flexibility for various presentation needs.

LIGHTBARS

Rendering of single-arm edge light mounted to the extrusion for SEG lightboxes.

Standard Lights

5 LED Bar

CAN be used on the 390, 650, and 800 extrusions & CAN NOT be used on the 244 and 450 extrusions

Closeup view of LED driver used to power SEG lightbox lighting systems, shown with cord and connection plug.

Driver

UL (24V 96W)

1 driver every 6’ - 3 light bars per 1 driver

Rendering of HD single-arm edge light mounted to the extrusion for SEG lightboxes.

HD Lights

10 LED bar

Narrow beam and throws 10’, used for frames over 10’ or for thin extrusion

Rendering of single-arm UL certified edge light mounted to the extrusion for SEG lightboxes.

UL Listed

9 LED Bar

UL Listed for permanent installations

SEG ACCESSORIES

Rendering of a metal base plate used to stabilize freestanding SEG frames and lightboxes.

Base Foot

1 on each end, and every 5’ in-between + spacer with each foot

Rendering of clip used to attach LED edge lights to SEG lightbox frames for internal stability.

Tension Locks

2 locks per support bar

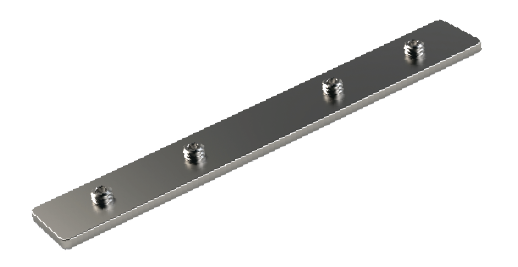

Rendering of inline connector used to extend SEG extrusions in a straight line for large fabric frames.

Splicer

Every 10’ length OR to connect 2 bars together

Rendering of support bar extrusion used for extra large displays as extra support inside lightbox.

Support Bar

Every 5’

Rendering of 1.5 inch round aluminum tube used as a structural support frame for SEG displays and hanging signs.

TUBE STRUCTURES

RT-150 1.5” Round Tube

  • The 2" tube extrusion provides a versatile solution for hanging signs, featuring a pillowcase tension fabric that allows for easy installation and seamless display. Additionally, it can be transformed into a free-standing frame or canopy structure, providing flexibility for various signage needs.

  • Designed for hanging signs in mind, this 2” tube offers a lightweight and cost-effective solution.

TUBE ACCESSORIES

Rendering of tube connector used to join two round aluminum tubes in SEG support structures.

Couple Adapter

2 per 1.5” support bar (RT-150)

Closeup rendering of metal eye hook used to suspend or secure tube structures in SEG display systems.

Eye Hook

Every 5’
